Lexus ES: Components
COMPONENTS

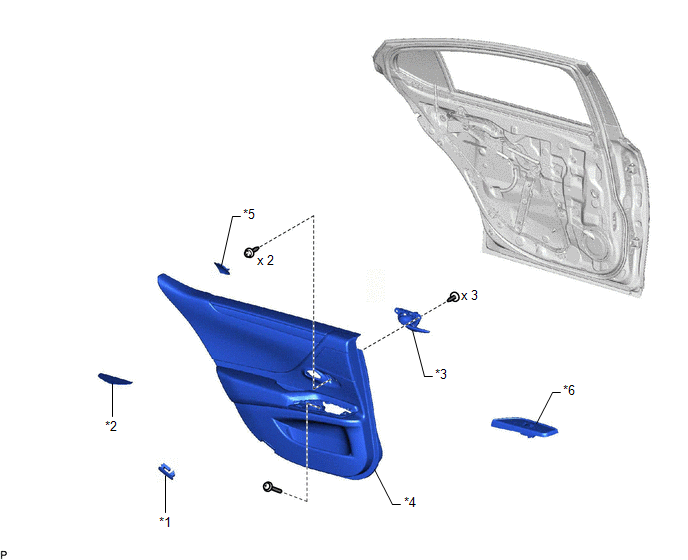

ILLUSTRATION
| *1 | COURTESY LIGHT ASSEMBLY | *2 | REAR DOOR ARMREST COVER |
| *3 | REAR DOOR INSIDE HANDLE SUB-ASSEMBLY | *4 | REAR DOOR TRIM BOARD SUB-ASSEMBLY |
| *5 | REAR DOOR TRIM UPPER PAD | *6 | REAR POWER WINDOW REGULATOR SWITCH ASSEMBLY WITH REAR DOOR UPPER ARMREST BASE PANEL |

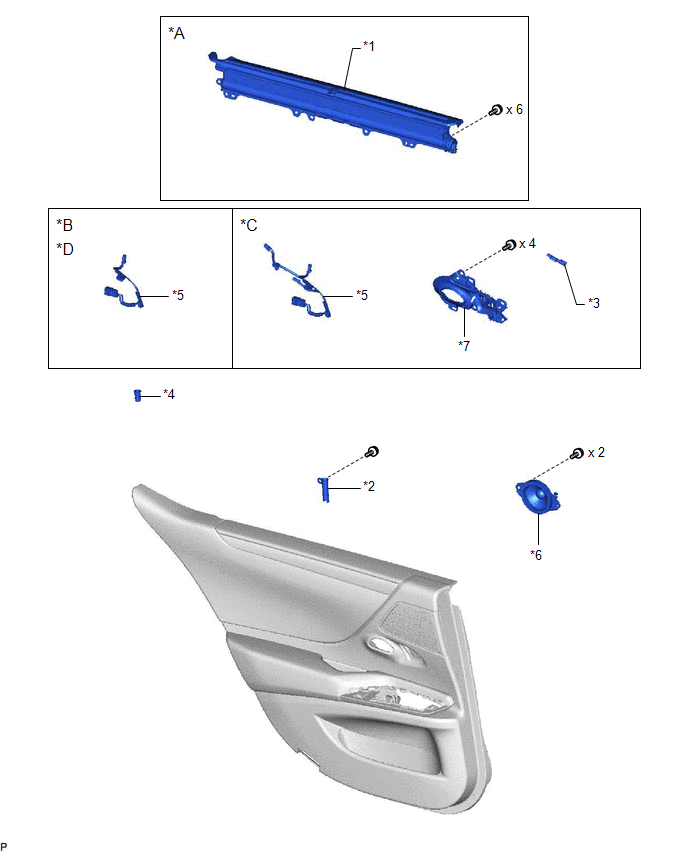

ILLUSTRATION
| *A | w/ Rear Door Sunshade | *B | w/o Illumination |
| *C | w/ Illumination | *D | w/ Sub Wire Harness |
| *1 | REAR CURTAIN SUB-ASSEMBLY | *2 | REAR DOOR DOOR LOCKING HOLDER |
| *3 | REAR DOOR INSIDE HANDLE ILLUMINATION LIGHT ASSEMBLY | *4 | REAR DOOR LOCK CONTROL KNOB BEZEL |
| *5 | REAR DOOR WIRE | *6 | REAR SPEAKER ASSEMBLY |
| *7 | REAR DOOR INSIDE HANDLE BEZEL | - | - |

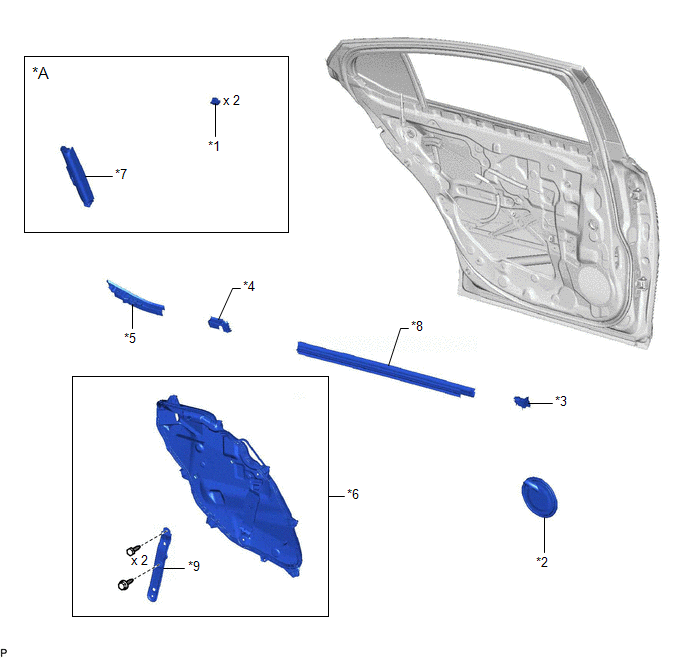

ILLUSTRATION
| *A | w/ Rear Door Sunshade | - | - |
| *1 | CURTAIN HOOK | *2 | REAR DOOR NO. 1 SERVICE HOLE COVER |
| *3 | REAR DOOR NO. 2 SERVICE HOLE COVER | *4 | REAR DOOR NO. 2 VENT SEAL |
| *5 | REAR DOOR PANEL PROTECTOR | *6 | REAR DOOR SERVICE HOLE COVER |
| *7 | REAR SIDE CURTAIN ASSEMBLY | *8 | REAR DOOR INNER GLASS WEATHERSTRIP |
| *9 | BRACKET | - | - |

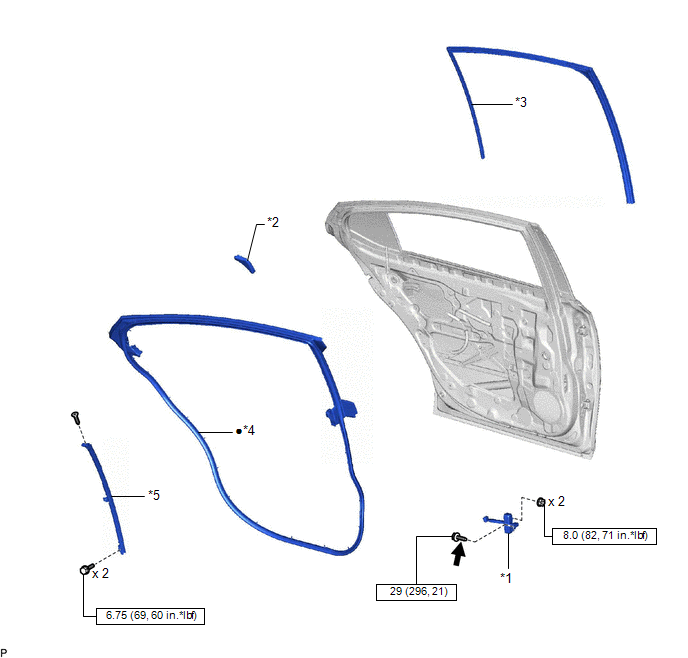

ILLUSTRATION
| *1 | REAR DOOR CHECK ASSEMBLY | *2 | REAR DOOR FRAME GARNISH |
| *3 | REAR DOOR GLASS RUN | *4 | REAR DOOR WEATHERSTRIP |
| *5 | REAR DOOR WINDOW DIVISION BAR SUB-ASSEMBLY | - | - |
.png) | N*m (kgf*cm, ft.*lbf): Specified torque | ● | Non-reusable part |
.png) | Toyota Genuine Adhesive 1324, Three Bond 1324 or equivalent | ★ | Precoated part |

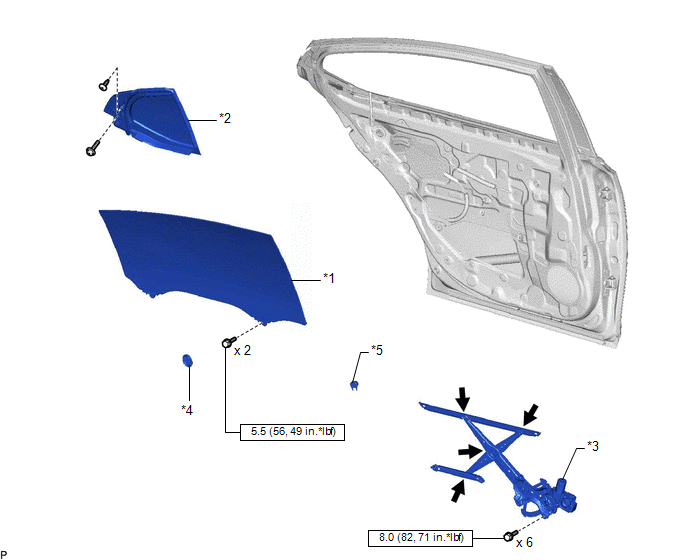

ILLUSTRATION
| *1 | REAR DOOR GLASS SUB-ASSEMBLY | *2 | REAR DOOR QUARTER WINDOW GLASS SUB-ASSEMBLY |
| *3 | REAR DOOR WINDOW REGULATOR ASSEMBLY | *4 | HOLE PLUG |
| *5 | REAR DOOR NO. 3 SERVICE HOLE COVER | - | - |
| | N*m (kgf*cm, ft.*lbf): Specified torque | | MP grease |

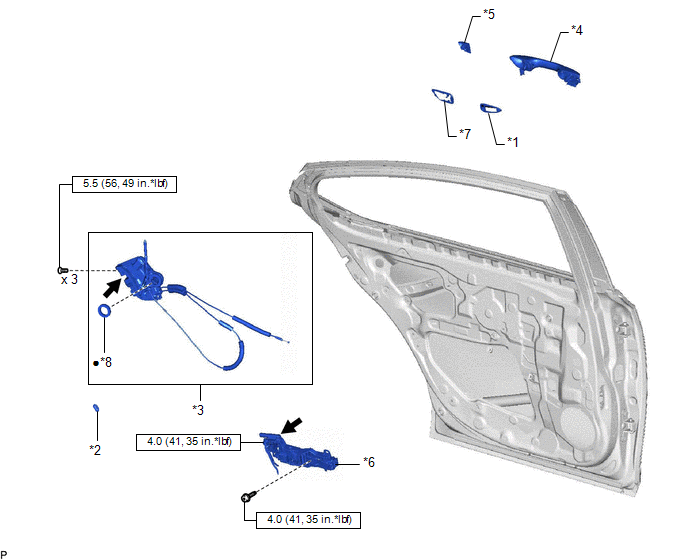

ILLUSTRATION
| *1 | REAR DOOR FRONT OUTSIDE HANDLE PAD | *2 | REAR DOOR LOCK CHILD PROTECTION COVER |
| *3 | REAR DOOR LOCK WITH MOTOR ASSEMBLY | *4 | REAR DOOR OUTSIDE HANDLE ASSEMBLY |
| *5 | REAR DOOR OUTSIDE HANDLE COVER | *6 | REAR DOOR OUTSIDE HANDLE FRAME SUB-ASSEMBLY |
| *7 | REAR DOOR REAR OUTSIDE HANDLE PAD | *8 | DOOR LOCK WIRING HARNESS SEAL |
| | N*m (kgf*cm, ft.*lbf): Specified torque | ● | Non-reusable part |
| | MP grease | - | - |

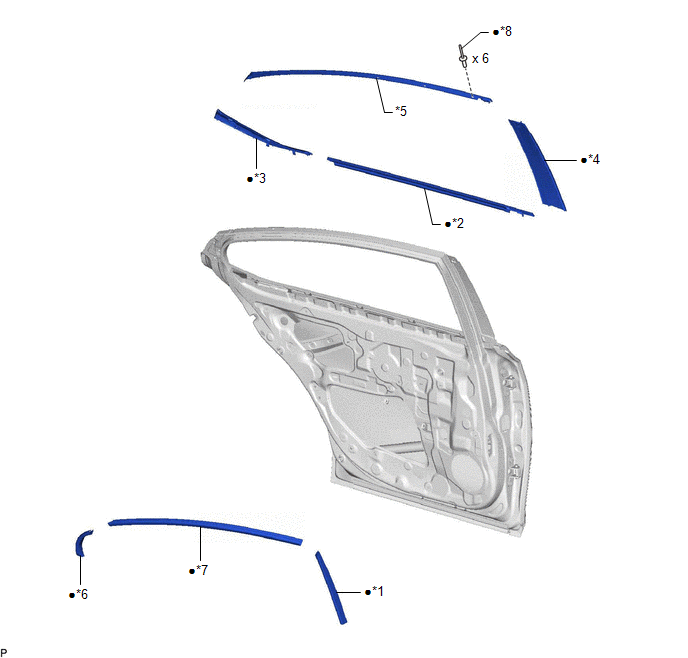

ILLUSTRATION
| *1 | FRONT INNER BLACK OUT TAPE | *2 | REAR DOOR BELT MOULDING ASSEMBLY |
| *3 | REAR DOOR BELT MOULDING SUB-ASSEMBLY | *4 | REAR DOOR FRONT WINDOW FRAME MOULDING |
| *5 | REAR DOOR WINDOW FRAME MOULDING SUB-ASSEMBLY | *6 | REAR INNER BLACK OUT TAPE |
| *7 | UPPER INNER BLACK OUT TAPE | *8 | RIVET |
| ● | Non-reusable part | - | - |

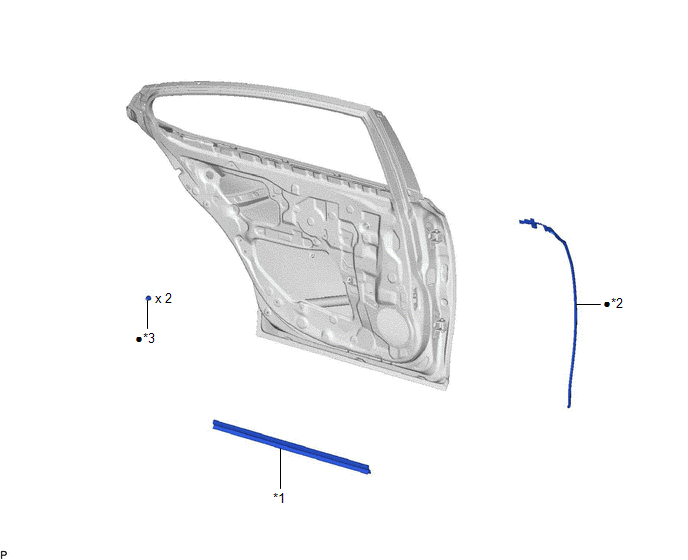

ILLUSTRATION
| *1 | REAR DOOR NO. 2 WEATHERSTRIP | *2 | REAR DOOR NO. 3 WEATHERSTRIP |
| *3 | REAR DOOR PANEL CUSHION | - | - |
| ● | Non-reusable part | - | - |
