Lexus ES: Components
COMPONENTS

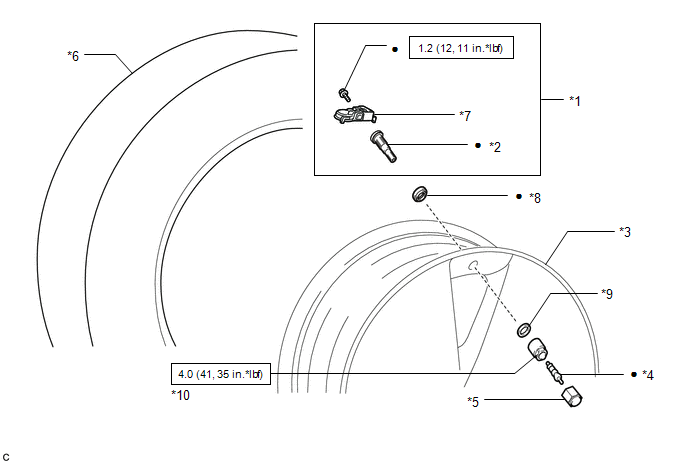

ILLUSTRATION
| *1 | TIRE PRESSURE WARNING VALVE AND TRANSMITTER | *2 | TUBELESS TIRE VALVE |
| *3 | DISC WHEEL | *4 | VALVE CORE |
| *5 | TIRE VALVE CAP | *6 | TIRE |
| *7 | TIRE PRESSURE MONITOR SENSOR | *8 | GROMMET |
| *9 | WASHER | *10 | NUT |
.png) | N*m (kgf*cm, ft.*lbf): Specified torque | ● | Non-reusable part |
READ NEXT:
Removal
REMOVAL CAUTION / NOTICE / HINT The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed and installed, or replaced during tire
Installation
INSTALLATION CAUTION / NOTICE / HINT NOTICE:
Always use a new bolt, grommet, tubeless tire valve and valve core when installing the tire pressure warning valve and transmitter.
Check that the was
Disposal
DISPOSAL CAUTION / NOTICE / HINT HINT: The tire pressure warning valve and transmitter is powered by a lithium battery. When disposing of the tire pressure warning valve and transmitter, remove the ba
