COMPONENTS

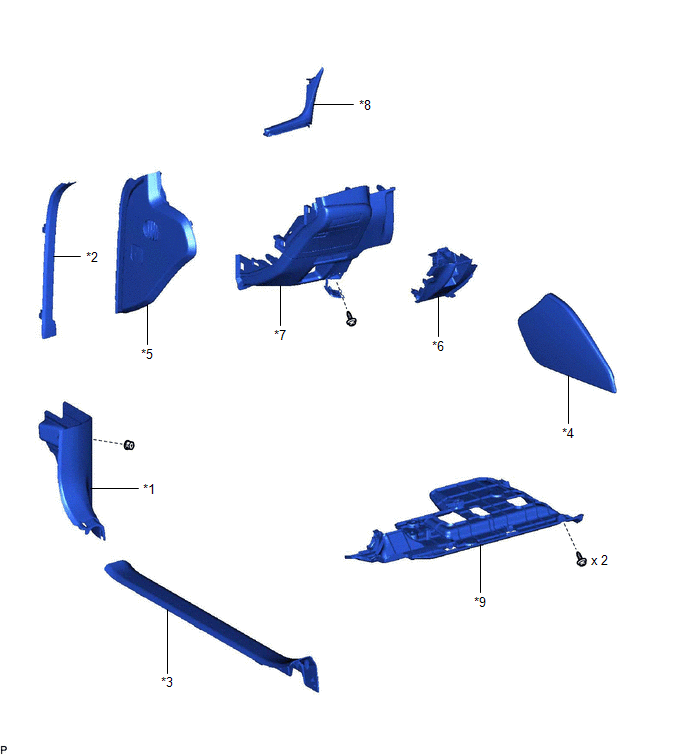

ILLUSTRATION

*1

COWL SIDE TRIM BOARD LH

*2

FRONT DOOR OPENING TRIM COVER LH

*3

FRONT DOOR SCUFF PLATE LH

*4

INSTRUMENT PANEL FINISH PANEL END LH

*5

INSTRUMENT SIDE PANEL LH

*6

LOWER INSTRUMENT PANEL

*7

LOWER INSTRUMENT PANEL FINISH PANEL SUB-ASSEMBLY

*8

NO. 1 INSTRUMENT CLUSTER MOULDING

*9

NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY

-

-

ILLUSTRATION

*1

AIR CONDITIONING CONTROL ASSEMBLY

*2

COWL SIDE TRIM BOARD RH

*3

FRONT DOOR OPENING TRIM COVER RH

*4

FRONT DOOR SCUFF PLATE RH

*5

INSTRUMENT SIDE PANEL RH

*6

LOWER INSTRUMENT PANEL SUB-ASSEMBLY

*7

NO. 2 INSTRUMENT CLUSTER MOULDING

-

-

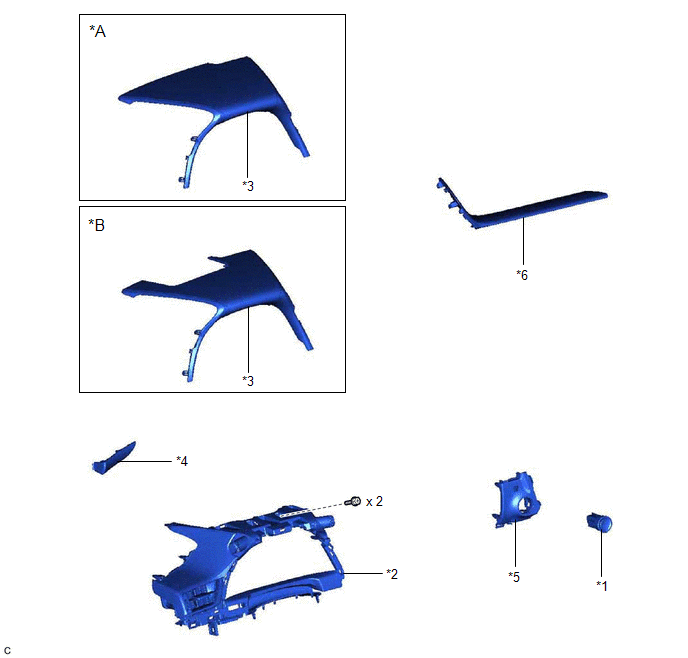

ILLUSTRATION

*A

w/o Headup Display

*B

w/ Headup Display

*1

POWER SWITCH

*2

INSTRUMENT CLUSTER FINISH PANEL ASSEMBLY

*3

INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY

*4

NO. 1 INSTRUMENT CLUSTER FINISH PANEL GARNISH

*5

SWITCH BASE

*6

UPPER INSTRUMENT PANEL FINISH PANEL SUB-ASSEMBLY
