Lexus ES (XZ10) Service Manual / Engine & Hybrid System / A25a-fxs (engine Mechanical) / Front Crankshaft Oil Seal / Components

COMPONENTS

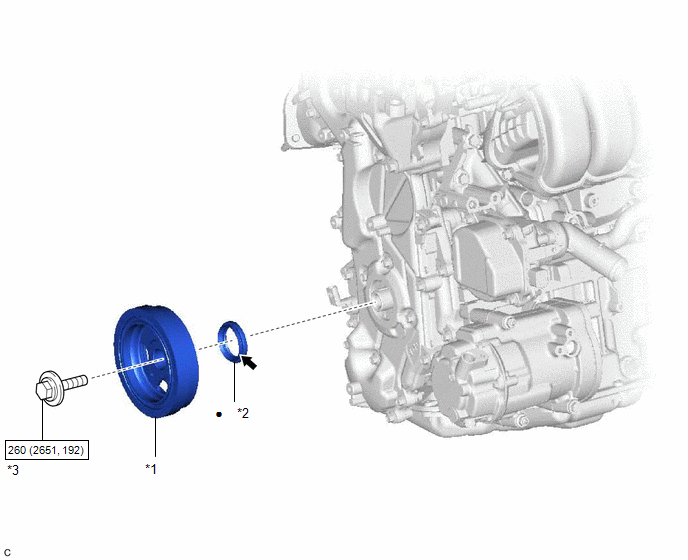

ILLUSTRATION

*1

CRANKSHAFT PULLEY ASSEMBLY

*2

TIMING CHAIN COVER OIL SEAL

*3

CRANKSHAFT PULLEY BOLT

-

-

N*m (kgf*cm, ft.*lbf): Specified torque

●

Non-reusable part

MP grease

-

-
