Lexus ES: Components
COMPONENTS
ILLUSTRATION

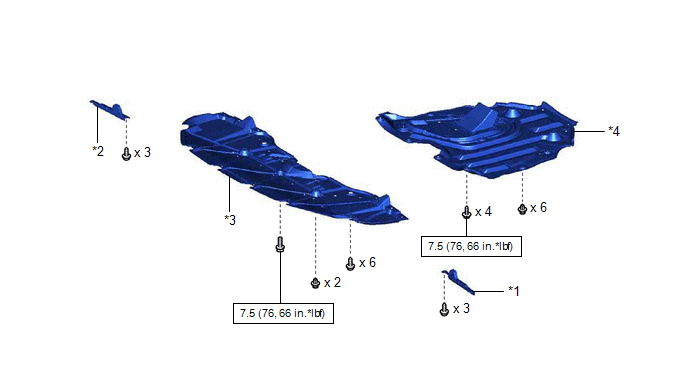

*1 | FRONT WHEEL OPENING EXTENSION PAD LH | *2 | FRONT WHEEL OPENING EXTENSION PAD RH |
*3 | NO. 1 ENGINE UNDER COVER | *4 | NO. 2 ENGINE UNDER COVER ASSEMBLY |
| N*m (kgf*cm, ft.*lbf): Specified torque | - | - |
ILLUSTRATION

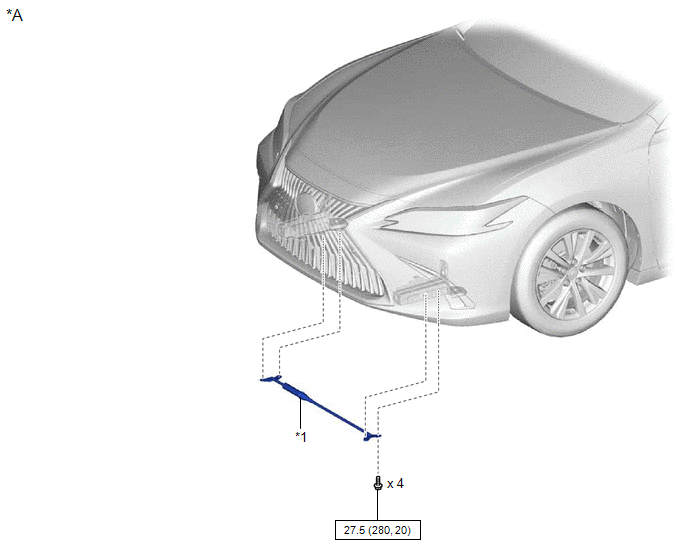

*A | w/ Performance Damper | - | - |
*1 | SUSPENSION TOWER DAMPER | - | - |
| N*m (kgf*cm, ft.*lbf): Specified torque | - | - |
ILLUSTRATION

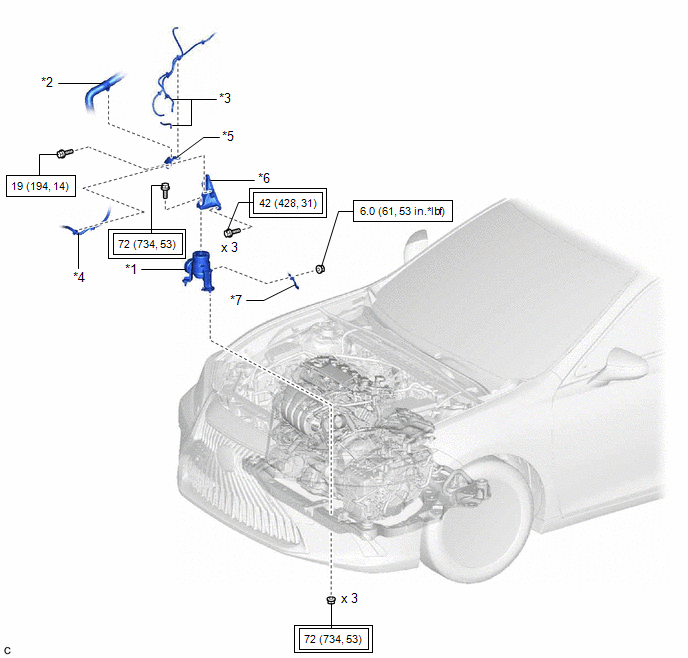

*1 | FRONT ENGINE MOUNTING INSULATOR | *2 | RADIATOR HOSE |
*3 | VACUUM HOSE | *4 | NO. 2 ENGINE WIRE |
*5 | NO. 1 RADIATOR BRACKET | *6 | FRONT ENGINE MOUNTING BRACKET |
*7 | STAY | - | - |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) | | N*m (kgf*cm, ft.*lbf): Specified torque |
