COMPONENTS

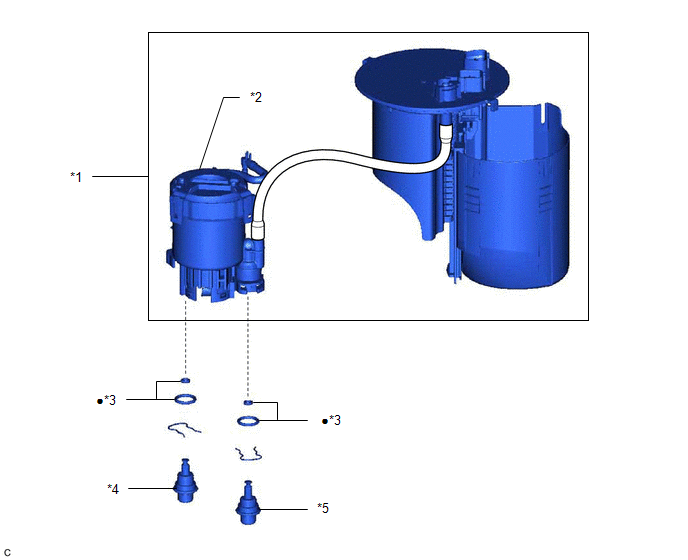

ILLUSTRATION
| *1 | FUEL SUCTION PLATE SUB-ASSEMBLY | *2 | FUEL FILTER |
| *3 | O-RING | *4 | FUEL MAIN VALVE ASSEMBLY (for Low Pressure) |
| *5 | FUEL MAIN VALVE ASSEMBLY (for High Pressure) | - | - |
| ● | Non-reusable part | - | - |
