Lexus ES: Components

COMPONENTS

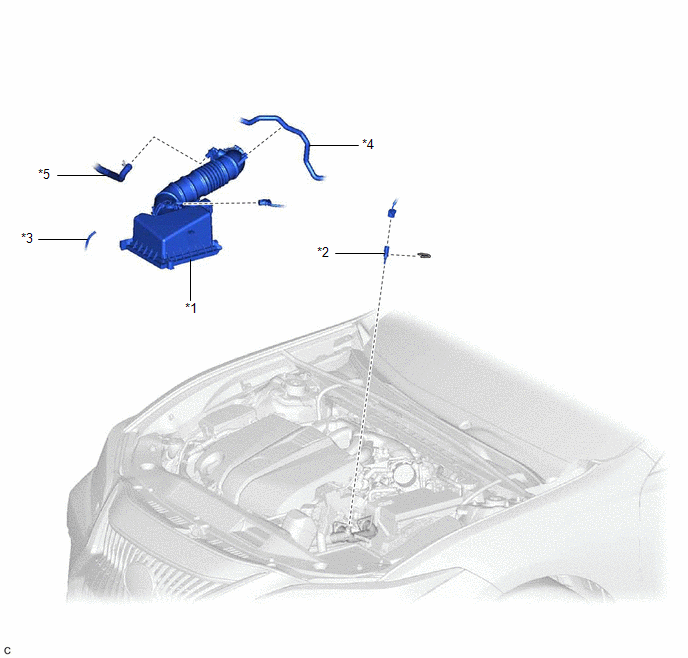

ILLUSTRATION

*1

AIR CLEANER CAP WITH AIR CLEANER HOSE

*2

ENGINE COOLANT TEMPERATURE SENSOR

*3

VACUUM HOSE

*4

NO. 1 FUEL VAPOR FEED HOSE

*5

NO. 2 VENTILATION HOSE

-

-
