Lexus ES (XZ10) Service Manual / Engine & Hybrid System / 2gr-fks (cooling) / Thermostat / Components
COMPONENTS

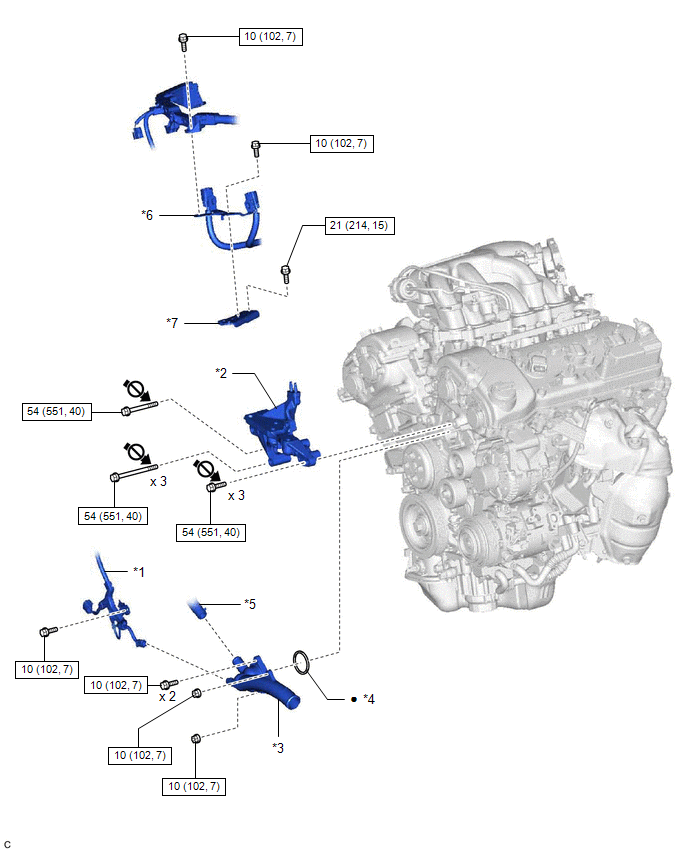

ILLUSTRATION
| *1 | ENGINE WIRE | *2 | FRONT NO. 1 ENGINE MOUNTING BRACKET LH |
| *3 | WATER INLET WITH THERMOSTAT SUB-ASSEMBLY | *4 | GASKET |
| *5 | WATER BY-PASS HOSE | *6 | WIRE HARNESS CLAMP BRACKET |
| *7 | NO. 2 ENGINE MOUNTING STAY RH | - | - |
.png) | N*m (kgf*cm, ft.*lbf): Specified torque | ● | Non-reusable part |
 | Do not apply lubricants to the threaded parts | - | - |
