Lexus ES: Components

COMPONENTS

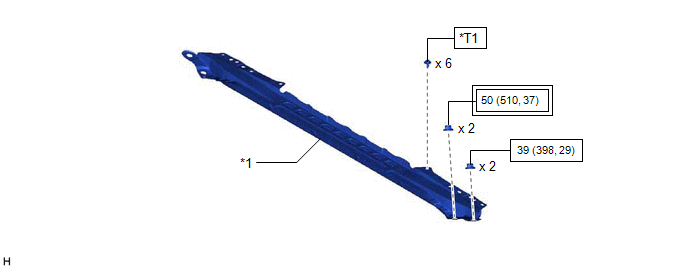

ILLUSTRATION

*1

FRONT CENTER UPPER SUSPENSION BRACE SUB-ASSEMBLY

-

-

Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping" : N*m (kgf*cm, ft.*lbf)

N*m (kgf*cm, ft.*lbf): Specified torque

*T1

Bolt color black: 8.0 N*m (82 kgf*cm, 71 in.*lbf)

Bolt color silver: 8.9 N*m (91 kgf*cm, 79 in.*lbf)

-

-

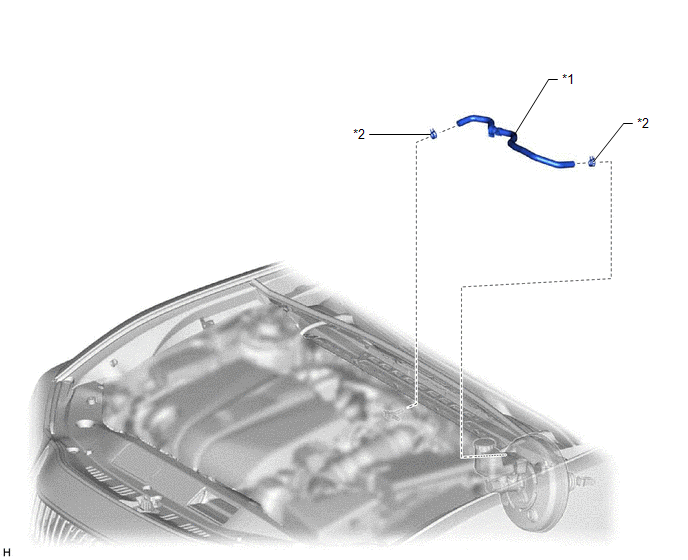

ILLUSTRATION

*1

UNION TO CHECK VALVE HOSE

*2

CLIP

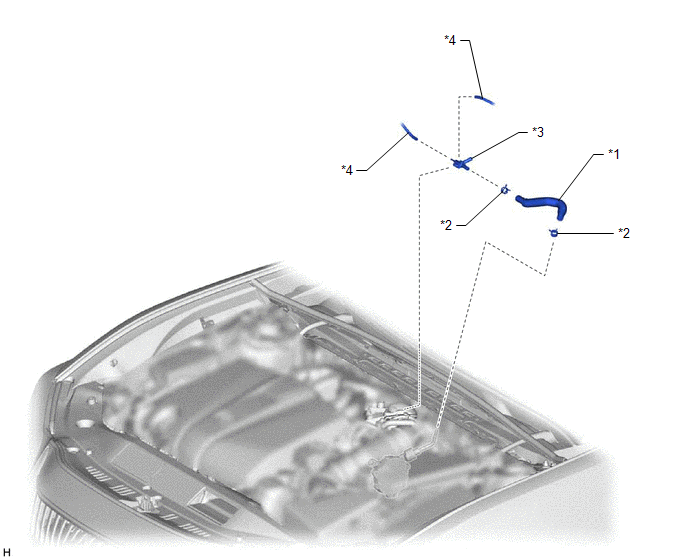

ILLUSTRATION

*1

AIR TUBE

*2

CLIP

*3

AIR DELIVERY WAY

*4

VACUUM TRANSMITTING HOSE ASSEMBLY
