COMPONENTS

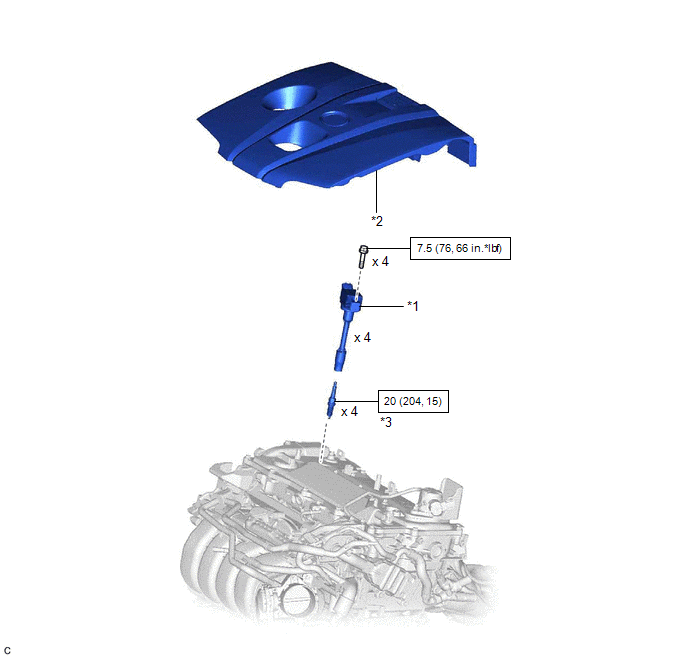

ILLUSTRATION

*1

IGNITION COIL ASSEMBLY

*2

NO. 1 ENGINE COVER SUB-ASSEMBLY

*3

SPARK PLUG

-

-

N*m (kgf*cm, ft.*lbf): Specified torque

-

-
