Lexus ES (XZ10) Service Manual / General / Maintenance / A25a-fks Coolant / Components

COMPONENTS

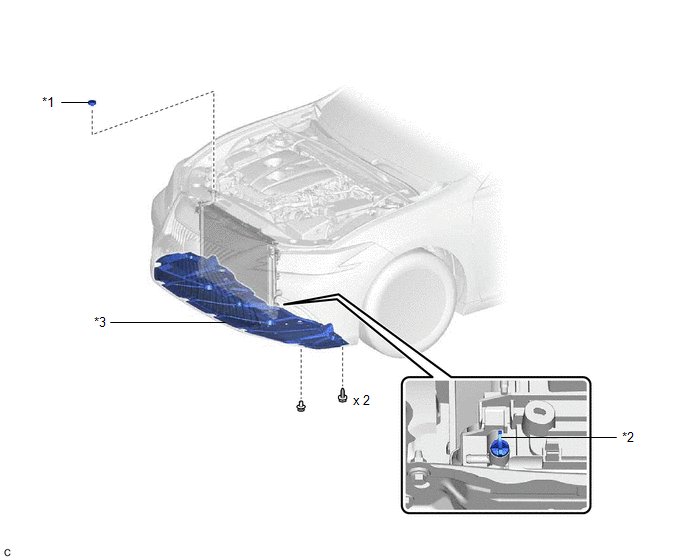

ILLUSTRATION

*1

RADIATOR CAP SUB-ASSEMBLY

*2

RADIATOR DRAIN COCK PLUG

*3

NO. 1 ENGINE UNDER COVER

-

-
