Lexus ES: Automatic air conditioning system

Air outlets and fan speed are automatically adjusted according to the temperature setting.

12.3-inch display model: The air conditioning system can be displayed and operated on the side display.

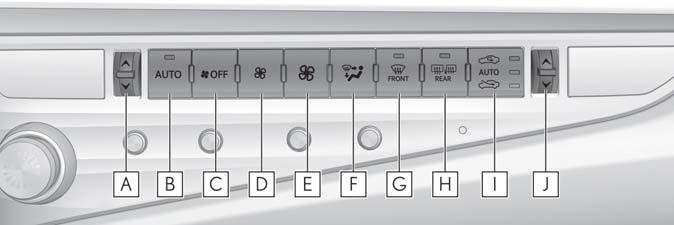

Air conditioning controls

1. Left-hand side temperature control switch
2. Automatic mode switch
3. Off switch
4. Fan speed decrease switch
5. Fan speed increase switch
6. Airflow mode control switch
7. Windshield defogger switch
8. Rear window and outside rear view mirror defoggers switch
9. Outside/recirculated air mode switch
10. Right-hand side temperature control switch

■ Adjusting the temperature Operate the temperature control switch upwards to increase the temperature and downwards to decrease the temperature.

If the "A/C" indicator is turned off, the system will blow ambient temperature air or heated air.

■ Setting the fan speed Operate the fan speed increase switch to increase the fan speed and the fan speed decrease switch to decrease the fan speed.

Press the off switch to turn the fan off.

■ Changing the air flow mode Press the airflow mode control switch.

The mode changes as follows each time the switch is pressed.

■ Switching between outside air and recirculated air modes Press the outside/recirculated air mode switch.

The mode changes as follows each time the switch is pressed.

(recirculated air mode) → automatic mode* → (outside air mode) → (recirculated air mode) When the system is switched to automatic mode, the air conditioning system operates automatically.

*: This item cannot be selected when the air conditioning is off.

■ Defogging the windshield Defoggers are used to defog the windshield and front side windows.

Press the windshield defogger switch.

Set the outside/recirculated air mode switch to outside air mode if the recirculated air mode is used. (It may switch automatically.) To defog the windshield and the side windows early, turn the air flow and temperature up.

To return to the previous mode, press the windshield defogger switch again when the windshield is defogged.

■ Defogging the rear window and outside rear view mirrors Defoggers are used to defog the rear window, and to remove raindrops, dew and frost from the outside rear view mirrors.

Press the rear window and outside rear view mirror defoggers switch.

The defoggers will automatically turn off after 15 minutes.

■When the outside temperature exceeds 75ºF (24ºC) and the air conditioning system is on

• In order to reduce the air conditioning power consumption, the air conditioning system may switch to recirculated air mode automatically. This may also reduce fuel consumption.
• Recirculated air mode is selected as a default mode when the power switch is turned to ON mode.
• It is possible to switch to outside air mode at any time by pressing the outside/recirculated air mode switch.

■Fogging up of the windows The windows will easily fog up when the humidity in the vehicle is high. Turning "A/C" on will dehumidify the air from the outlets and defog the windshield effectively.

• If you turn "A/C" off, the windows may fog up more easily.
• The windows may fog up if the recirculated air mode is used.

■When driving on dusty roads Close all windows. If dust thrown up by the vehicle is still drawn into the vehicle after closing the windows, it is recommended that the air intake mode be set to outside air mode and the fan speed to any setting except off.

■Outside/recirculated air mode

• Setting to the recirculated air mode temporarily is recommended in preventing dirty air from entering the vehicle interior and helping to cool the vehicle when the outside air temperature is high.
• Outside/recirculated air mode may automatically switch regardless of the air conditioning setting depending on the temperature setting or inside temperature.

■Registering air conditioning settings to electronic keys

• Unlocking the vehicle using an electronic key and turning the power switch to ON mode will recall that key's registered air conditioning settings.

• When the power switch is turned off, the current air conditioning settings will automatically be registered to the electronic key that was used to unlock the vehicle.

• The system may not operate correctly if more than one electronic key is in the vicinity or if the smart access system with push-button start is used to unlock the passenger door.

• Vehicles with the driving position memory: The doors that can recall the air conditioning setting* when unlocked using the smart access system with push-button start can be changed. For details, contact your Lexus dealer.

*: The doors that can recall the driving position memory are changed at the same time.

■Operation of the air conditioning system in Eco drive mode

In Eco drive mode, the air conditioning system is controlled as follows to prioritize fuel efficiency:

• Engine speed and compressor operation controlled to restrict heating/cooling capacity

• Fan speed restricted when automatic mode is selected

To improve air conditioning performance, perform the following operations:

• Turn off eco air conditioning mode

• Adjust the fan speed

• Turn off Eco drive mode

■When the outside temperature falls to nearly 32ºF (0ºC) The dehumidification function may not operate even when "A/C" is selected.

■Ventilation and air conditioning odors

• To let fresh air in, set the air conditioning system to the outside air mode.

• During use, various odors from inside and outside the vehicle may enter into and accumulate in the air conditioning system.

  This may then cause odor to be emitted from the vents.

• When parking, the system automatically switches to fresh air intake mode to encourage better air circulation throughout the vehicle, helping to reduce odors that occur when starting the vehicle.

■Using the voice command system Air conditioning system can be operated using voice commands. For details, refer to the "NAVIGATION AND MULTIMEDIA SYSTEM OWNER'S MANUAL".

■Customization Settings (e.g. A/C Auto switch operation) can be changed.

WARNING

■To prevent the windshield from fogging up Do not use the windshield defogger switch during cool air operation in extremely humid weather. The difference between the temperature of the outside air and that of the windshield can cause the outer surface of the windshield to fog up, blocking your vision.

WARNING

■When the outside rear view mirror defoggers are operating Do not touch the outside rear view mirror surfaces, as they can become very hot and burn you.

NOTICE

■To prevent 12-volt battery discharge Do not leave the air conditioning system on longer than necessary when the hybrid system is off.

Air conditioning control screen

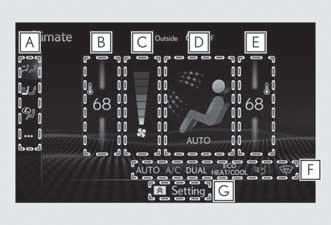

■ Main control screen Using the touchpad of the Remote Touch, select the button on the screen.

B to E can be adjusted by performing the following operations.

Flick operation: Move the pointer to the desired item and flick the touchpad up or down.

The item can be adjusted by one level.

Trace operation: After selecting the desired item, trace the pad surface.

The item can be adjusted by the amount that you trace.

Trace operation cannot be used while driving.

1. Sub menu

Selecting the sub menu item to switch the main screen.

Display the air conditioning control screen

Display the heated steering wheel/seat heater/seat ventilator control screen (if equipped)

Display the Lexus Climate Concierge control screen

Display the option control screen

2. Adjust the left-hand side temperature setting
3. Adjust the fan speed setting
4. Select the air flow mode

Air flows to the upper body

Air flows to the upper body and feet

Air flows to the feet

Air flows to the feet and the windshield defogger operates

5. Adjust the right-hand side temperature setting

6. Function on/off indicators

When the function is on, the indicator illuminates on the control screen.

7. Sub function menu

When the sub function button on the Remote Touch is pressed, the following functions can be switched on and off.

Set Lexus Climate Concierge

"AUTO": Set automatic mode on/off
"Off": Turn the fan off
"A/C": Set cooling and dehumidification function
"DUAL": Adjust the temperature for driver and front passenger seats separately ("DUAL" mode)

Set eco air conditioning mode

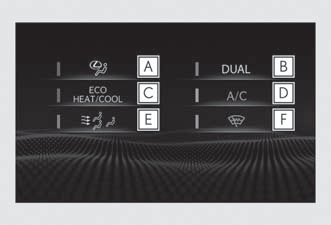

■ Option control screen

Select on the sub menu to display the option control screen.

The functions can be switched on and off.

When the function is on, the indicator illuminates on the screen.

1. Set Lexus Climate Concierge
2. Adjusting the temperature for driver and front passenger seats separately ("DUAL" mode)
3. Set eco air conditioning mode

Air conditioning and heater output is limited to prioritize fuel economy.

4. Cooling and dehumidification function
5. Select the S-FLOW mode
6. Prevent ice from building up on the windshield and wiper blades (Windshield wiper de-icer) (if equipped)

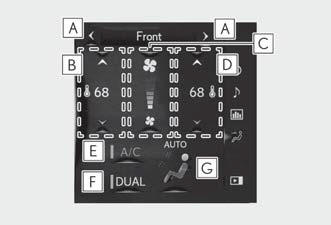

■ Side display (12.3-inch display model)

1. Display the heated steering wheel/seat heaters/seat ventilators control screen (if equipped)
2. Adjust the left-hand side temperature setting
3. Adjust the fan speed setting
4. Adjust the right-hand side temperature setting
5. Set cooling and dehumidification function on/off
6. Adjust the temperature for the driver's and front passenger's seats separately ("DUAL" mode)
7. Select the air flow mode

■Windshield wiper de-icer (if equipped) This feature is used to prevent ice from building up on the windshield and wiper blades.

The windshield de-icer will automatically turn off after approximately 15 minutes.

■Eco air conditioning mode When Eco drive mode is selected using the Driving Mode Select switch, eco air conditioning mode turns on.

When a drive mode other than Eco drive mode is selected, eco air conditioning mode may turn off.

WARNING

■To prevent burns (vehicles with windshield wiper de-icer) Do not touch the glass at lower part of the windshield or to the side of the front pillars when the windshield wiper de-icer is on.

Using automatic mode

1. Press the automatic mode switch or select "AUTO" on the sub function menu. 2. Press the outside/recirculated air mode switch to switch to automatic air intake mode.

The air conditioning system automatically switches between outside air and recirculated air modes.

3. Adjust the temperature setting.

4. To stop the operation, press the off switch or select "Off" on the sub function menu.

If the fan speed setting or air flow modes are operated, the automatic mode indicator goes off. However, automatic mode for functions other than that operated is maintained.

■Using automatic mode Fan speed is adjusted automatically according to the temperature setting and the ambient conditions.

Therefore, the fan may stop for a while until warm or cool air is ready to flow immediately after the automatic mode switch is pressed or "AUTO" is selected.

Cool air may blow around the upper body even when the heater is on due to sunlight.

■Windshield fog detection function When automatic mode is set, the humidity sensor detects fog on the windshield and controls the air conditioning system to prevent fog.

■Automatic mode for air intake control In automatic mode, the system detects exhaust gas and other pollutants and automatically switches between outside air and recirculated air modes.

When the dehumidification function is off, and the fan is operating, turning automatic mode on will activate the dehumidification function. The next time the dehumidification function is turned off, the AUTO mode for switching between outside air and recirculated air modes is canceled.

NOTICE

■Humidity sensor In order to detect fog on the windshield, a sensor which monitors the temperature of the windshield, the surround humidity, etc. is installed.

Follow these points to avoid damaging the sensor:

• Do not disassemble the sensor
• Do not spray the glass cleaner on the sensor or subject it to strong impacts
• Do not stick anything on the sensor

S-FLOW mode

In S-FLOW mode, priority for the airflow is given to the front seats, reducing the airflow and air conditioning effect on the rear seats.

The following S-FLOW modes are available:

Automatic S-FLOW mode

When a rear passenger is determined to be in the vehicle, S-FLOW mode will be automatically disabled.

The indicator will illuminate on the air conditioning control screen when S-FLOW mode is enabled.

To enable/disable S-FLOW mode and enter manual S-FLOW mode, select the S-FLOW mode switch.

Manual S-FLOW mode

When the S-FLOW mode switch is selected, S-FLOW mode will be manually enabled/disabled.

The indicator will illuminate on the air conditioning control screen when S-FLOW mode is enabled.

In this mode, the system does not determine whether a passenger is in the rear seats, so S-FLOW mode cannot be automatically disabled.

To automatically disable S-FLOW mode when opening and closing a rear door, switch to automatic S-FLOW mode.

■ S-FLOW air conditioning control Operation of S-FLOW mode changes according to the following conditions.

However, depending on the set temperature, the operation may not change.

• Driver seat priority:
  • When the system determines there is no passenger in the front passenger seat in manual S-FLOW mode
  • When the system determines there are no passengers in the front passenger seat and rear seats in automatic S-FLOW mode

The front passenger temperature display turns off.

• Front seat priority:
  When the system determines there are no passengers in the rear seats
• S-FLOW disabled:
  When the system determines there is a passenger in the rear seats

■Passenger presence determination in SFLOW mode

The system determines that there is a passenger in any of the following situations.

If a passenger is judged to be in the vehicle, the system will retain the judgment for a certain amount of time after the power switch is turned off.

Front passenger seat

• When the front passenger's door is opened and closed
• When a passenger is sitting on the front passenger seat
• When the front passenger side seat belt is fastened
• When the front passenger seat set temperature is changed

After only the front passenger side door is opened and closed, when the vehicle is driven at 12 mph (20 km/h) or more, the system determines that there is no passenger in the front passenger seat.

Rear seats

When a rear door is opened and closed

■Operation of automatic S-FLOW mode When the system is operating in S-FLOW mode, if a rear door is opened and then closed, S-FLOW mode will be disabled. To enable S-FLOW mode, select the S-FLOW mode switch. In this case, the system switches to manual S-FLOW mode.

■Changing from manual S-FLOW mode to automatic S-FLOW mode

1. Select the S-FLOW mode switch to disable S-FLOW mode.

2. Turn the power switch off.

3. After 60 minutes have elapsed, change the power switch to ON mode.

Adjusting the temperature for driver and passenger seats separately ("DUAL" mode)

To turn on the "DUAL" mode, perform any of the following procedures:

• Select "DUAL" on the sub function menu.
• Select "DUAL" on the option control screen.
• Adjust the front passenger's side temperature setting.

The indicator on the main control screen comes on when the "DUAL" mode is on.

Air outlet layout and operations

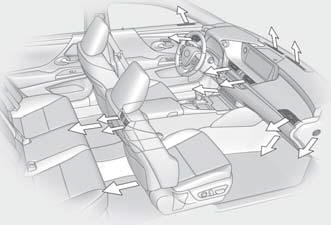

■ Location of air outlets The air outlets and air volume changes according to the selected air flow mode.

■ Adjusting the air flow direction and opening/closing the air outlets

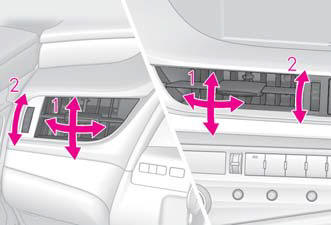

Front center/front side

1. Direct air flow to the left or right, up or down
2. Turn the knob to open or close the vent

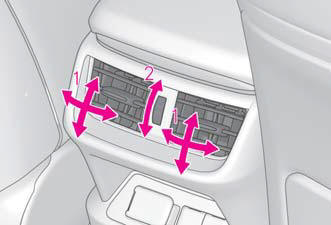

Rear

1. Direct air flow to the left or right, up or down
2. Turn the knob to open or close the vent

WARNING

■To prevent the windshield defogger from operating improperly Do not place anything on the instrument panel which may cover the air outlets.

Otherwise, air flow may be obstructed, preventing the windshield defoggers from defogging.
