ADJUSTMENT

CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed and installed, or replaced during automatic transaxle fluid adjustment are shown below.

Necessary Procedures After Parts Removed/Installed/Replaced

Replaced Part or Performed Procedure	Necessary Procedure	Effect/Inoperative Function when Necessary Procedure not Performed	Link
Replacement of automatic transaxle fluid	ATF thermal degradation estimate reset	The value of the Data List item "ATF Thermal Degradation Estimate" is not estimated correctly

PROCEDURE

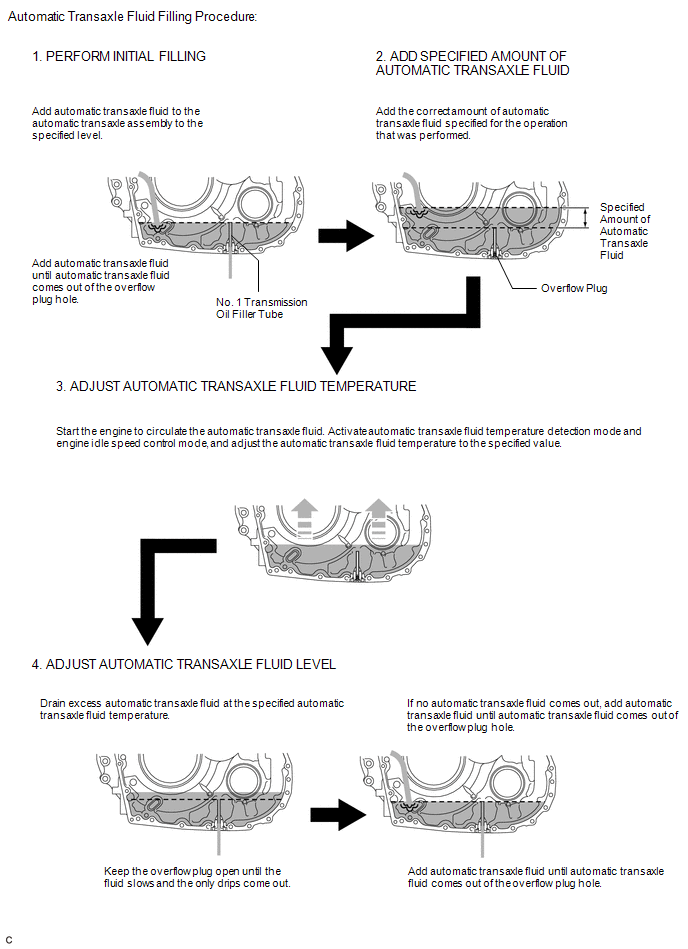

1. PRECAUTIONS AND WORK DESCRIPTION

(a) The UB80F automatic transaxle assembly does not have an oil filler tube and oil level gauge. When adding automatic transaxle fluid, add automatic transaxle fluid through the refill plug hole on the automatic transaxle case sub-assembly. The automatic transaxle fluid level can be adjusted by draining excess automatic transaxle fluid (allowing excess automatic transaxle fluid to overflow) through the overflow plug of the transaxle housing.

HINT:

"Overflow" indicates the condition under which automatic transaxle fluid comes out of the overflow plug hole.

(b) Before adjusting the automatic transaxle fluid level, add the specified amount of automatic transaxle fluid when the engine is cold and warm up the engine to circulate the automatic transaxle fluid in the automatic transaxle assembly. Ensure that the automatic transaxle fluid temperature is as specified and the engine is idling.

(d) The adjustment should be performed according to the procedures and notes.

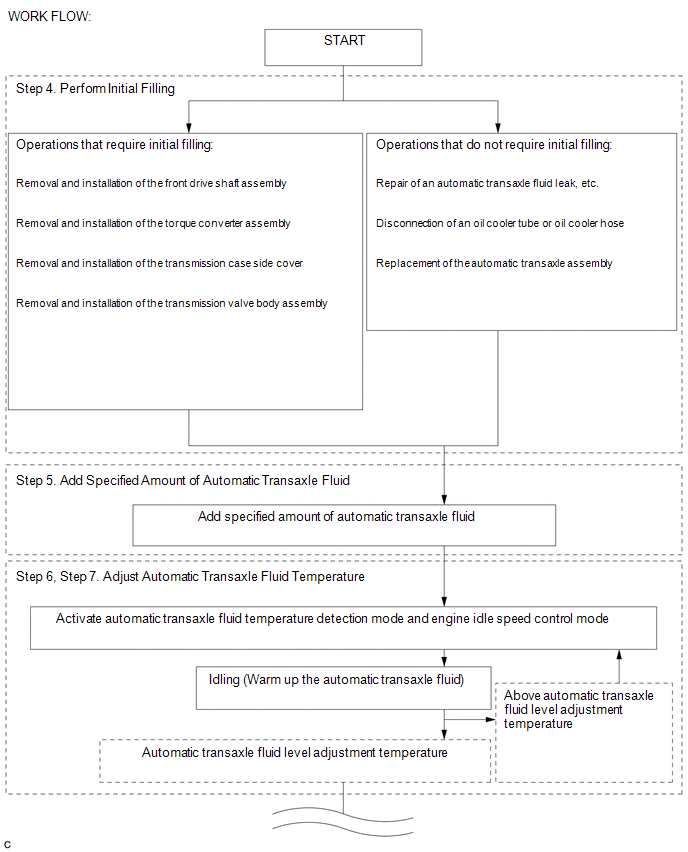

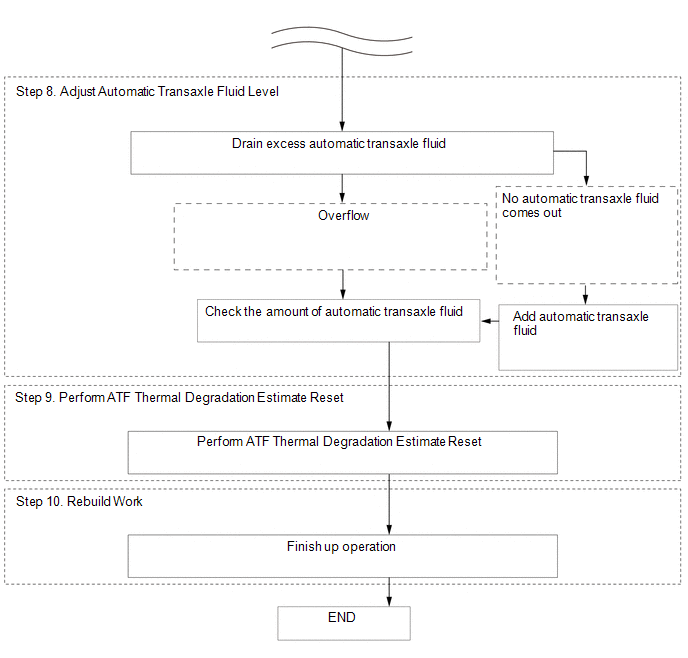

2. WORK FLOW

(a) The adjustment should be performed according to the procedure referenced in the work flow below.

3. PREPARATION WORK

(a) Lift the vehicle.

NOTICE:

Set the vehicle on a lift so that the vehicle is kept level when it is lifted up (make sure that the tilt angle from the front to rear and side to side of the vehicle is within +/- 1°).

(b) Remove the front wheel opening extension pad RH.

Click here

(d) Remove the No. 1 engine under cover.

Click here

(e) Remove the No. 2 engine under cover assembly.

Click here

(f) Remove the front fender apron seal LH.

Click here

4. PERFORM INITIAL FILLING

NOTICE:

If the automatic transaxle assembly is hot (automatic transaxle fluid temperature is high), wait until the automatic transaxle fluid temperature becomes the same as the ambient temperature before starting the following procedure. (Recommended automatic transaxle fluid temperature: around 20°C (68°F))

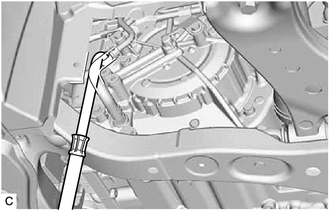

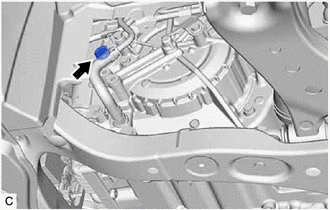

(a) Remove the refill plug and gasket from the automatic transaxle case sub-assembly.

NOTICE:

After performing any of the following operations, it is not necessary to perform the initial filling procedure. Proceed to the "Add Specified Amount of Automatic Transaxle Fluid" procedure.

Operations that do not require initial filling
Disconnection of an oil cooler tube or oil cooler hose Repair of an automatic transaxle fluid leak due to a loose case plug, or a faulty plug gasket or O-ring Replacement of the automatic transaxle assembly

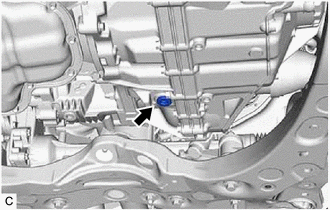

(b) Using a 10 mm hexagon socket wrench, remove the overflow plug and gasket from the transaxle housing.

NOTICE:

If automatic transaxle fluid comes out after removing the overflow plug, wait until the automatic transaxle fluid flow slows and only drips come out.
If automatic transaxle fluid comes out, it is not necessary to perform the initial filling procedure. After checking the tightening torque of the No. 1 transmission oil filler tube, temporarily install the overflow plug.

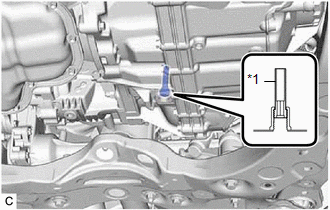

(c) Using a 6 mm hexagon socket wrench, check that the No. 1 transmission oil filler tube is tightened to the specified torque.

Torque:

1.7 N·m {17 kgf·cm, 15 in·lbf}

NOTICE:

If the No. 1 transmission oil filler tube is not tightened to the specified torque, the amount of automatic transaxle fluid cannot be precisely adjusted.

HINT:

To check the torque of the No. 1 transmission oil filler tube, insert the 6 mm hexagon socket wrench into the overflow plug hole.

*1	No. 1 Transmission Oil Filler Tube

(d) Perform initial filling.

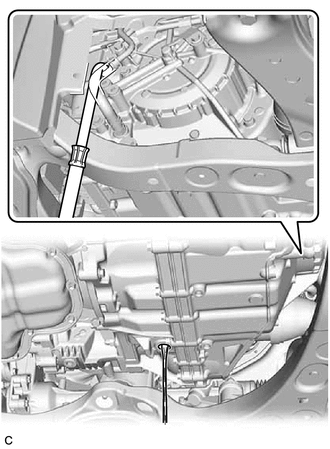

(1) Fill the automatic transaxle assembly through the refill plug hole until automatic transaxle fluid begins to come out of the overflow plug hole.

NOTICE:

Use Toyota Genuine ATF WS.

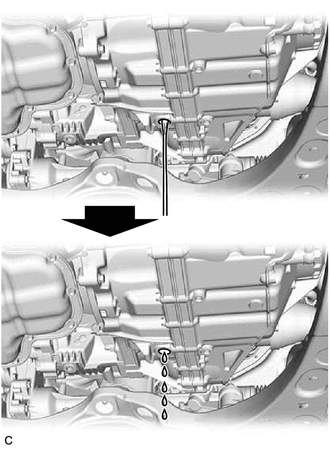

(e) Wait until the automatic transaxle fluid flow slows and only drips come out.

(f) Using a 10 mm hexagon socket wrench, temporarily install the gasket and overflow plug to the transaxle housing.

HINT:

Reuse the old gasket as the overflow plug will be removed again to adjust the automatic transaxle fluid level.

(g) Temporarily install the gasket and refill plug to the automatic transaxle case sub-assembly.

HINT:

Reuse the old gasket as the refill plug will be removed again to adjust the automatic transaxle fluid level.

5. ADD SPECIFIED AMOUNT OF AUTOMATIC TRANSAXLE FLUID

(a) Remove the refill plug and gasket from the automatic transaxle case sub-assembly.

(b) Fill the automatic transaxle assembly with the correct amount of automatic transaxle fluid as listed in the table below.

NOTICE:

Use Toyota Genuine ATF WS.

HINT:

The refill amount differs depending on the operation that was performed.

Reference Capacity:

Performed Repair	Fill Amount
Automatic transaxle assembly replacement (with a new torque converter assembly)	5.4 liters (5.7 US qts, 4.8 Imp. qts)
Automatic transaxle assembly replacement (when reusing the torque converter assembly)	5.0 liters (5.3 US qts, 4.4 Imp. qts)
Removal and installation of the transmission case side cover (with removal and installation overflow plug)	3.2 liters (3.4 US qts, 2.8 Imp. qts)
Removal and installation of a front drive shaft assembly	3.2 liters (3.4 US qts, 2.8 Imp. qts)
Removal and installation of the transmission valve body assembly	3.2 liters (3.4 US qts, 2.8 Imp. qts)
Removal and installation of the torque converter assembly	3.2 liters (3.4 US qts, 2.8 Imp. qts)
Repair of an automatic transaxle fluid leak due to a loose case plug, or a faulty plug gasket or O-ring	0.5 liters (0.5 US qts, 0.4 Imp. qts)

HINT:

Reuse the old gasket as the refill plug will be removed again to adjust the automatic transaxle fluid level.

(d) Lower the vehicle.

6. ADJUST AUTOMATIC TRANSAXLE FLUID TEMPERATURE (when Using the Techstream)

HINT:

The actual automatic transaxle fluid temperature can be checked on the Data List using the Techstream.

(a) Connect the Techstream to the DLC3 with the engine switch off.

(b) Turn the engine switch to on (IG) and turn the Techstream on.

NOTICE:

To reduce load, make sure that all electrical systems, such as the air conditioning, lighting system, electric fan and audio system, are off.

Powertrain > Transmission > Active Test

Active Test Display
Activate the TC Terminal

Data List Display
A/T Oil Temperature No.1

(d) According to the display on the Techstream, perform the Data List "A/T Oil Temperature No.1".

(e) According to the display on the Techstream, perform the Active Test Activate the TC Terminal and set it to "ON".

(f) Check the automatic transaxle fluid temperature.

NOTICE:

If the automatic transaxle fluid temperature is below 45°C (113°F), proceed to the next step. Recommended automatic transaxle fluid temperature: 35°C (95°F) or less
If the automatic transaxle fluid temperature is 45°C (113°F) or more, turn the engine switch off and wait until the automatic transaxle fluid temperature drops below 45°C (113°F).

(g) Depress and hold the brake pedal.

(h) Start the engine.

(i) Slowly move the shift lever from P to D, then back to P.

HINT:

Slowly move the shift lever to circulate the automatic transaxle fluid through each part of the automatic transaxle assembly.
Keep the shift lever in each position for approximately 3 seconds.

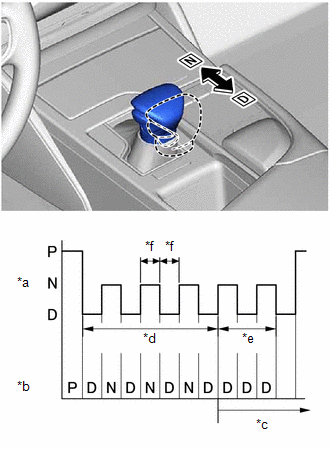

(j) While observing the D shift indicator on the combination meter, move the shift lever back and forth between N and D at an interval of less than 1.5 seconds for 6 seconds or more.

NOTICE:

Do not pause for more than 1.5 seconds.

HINT:

Performing this operation will cause the vehicle to enter automatic transaxle fluid temperature detection mode.

*a	Shift Position
*b	Indication of Shift Position
*c	Automatic Transaxle Fluid Temperature Detection Mode
*d	6 sec. or more
*e	2 sec.
*f	Less than 1.5 sec.

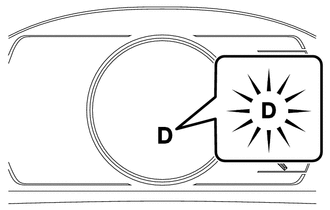

(k) Check that the D shift indicator comes on for 2 seconds.

HINT:

When automatic transaxle fluid temperature detection mode is activated, the D shift indicator on the combination meter comes on for 2 seconds.
If the D shift indicator does not come on for 2 seconds, return to the first step (perform the Active Test Activate the TC Terminal and set it to "ON") and perform the procedure again.

(l) Move the shift lever to P.

(m) Release the brake pedal.

(n) According to the display on the Techstream, perform the Active Test Activate the TC Terminal and set it to "OFF".

NOTICE:

Make sure that the Active Test is changed to "OFF". If it is not, the automatic transaxle fluid level cannot be precisely adjusted due to fluctuations in engine speed.

HINT:

Changing the Active Test to "OFF" activates engine idle speed control mode.
In engine idle speed control mode, engine idle speed control starts when the automatic transaxle fluid temperature reaches the specified temperature and the engine speed is maintained.
Even after the Active Test is changed to "OFF", automatic transaxle fluid temperature detection mode will be active until the engine switch is turned off.

(o) Adjust the automatic transaxle fluid temperature to the automatic transaxle fluid level adjustment temperature.

(1) Check the automatic transaxle fluid temperature by monitoring the D shift indicator.

Relationship between Automatic Transaxle Fluid Level Adjustment Temperature and the D Shift Indicator:

	Below Automatic Transaxle Fluid Level Adjustment Temperature	Automatic Transaxle Fluid Level Adjustment Temperature	Above Automatic Transaxle Fluid Level Adjustment Temperature
Automatic Transaxle Fluid Temperature ("A/T Oil Temperature No.1" displayed on the Techstream)	35°C (95°F) or less	35 to 45°C (95 to 113°F)	45°C (113°F) or more
D Shift Indicator	Off	On	Blinks

HINT:

In automatic transaxle fluid temperature detection mode, the D shift indicator comes on, goes off, or blinks depending on the automatic transaxle fluid temperature.
The automatic transaxle fluid filling procedure should be performed when the D shift indicator is on (the automatic transaxle fluid temperature is within the automatic transaxle fluid level adjustment temperature range).

(2) If the D shift indicator is on [Automatic Transaxle Fluid Level Adjustment Temperature: 35 to 45°C (95 to 113°F)]: Immediately proceed to the Adjust Automatic Transaxle Fluid Level (Step 8).

(3) Adjust the automatic transaxle fluid temperature.

If the D shift indicator is off [Below Automatic Transaxle Fluid Level Adjustment Temperature: 35°C (95°F) or less]: Warm up the engine with the engine idling in engine idle speed control mode until the D shift indicator turns on.
If the D shift indicator is on [Automatic Transaxle Fluid Level Adjustment Temperature: 35 to 45°C (95 to 113°F)]: Immediately proceed to Adjust Automatic Transaxle Fluid Level (Step 8).
If the D shift indicator is blinking [Above Automatic Transaxle Fluid Level Adjustment Temperature: 45°C (113°F) or more]: Stop the engine and wait until the automatic transaxle fluid temperature drops to 35°C (95°F) or less (the D shift indicator goes off). Then perform the adjust automatic transaxle fluid temperature procedure again from the beginning.

7. ADJUST AUTOMATIC TRANSAXLE FLUID TEMPERATURE (when Not Using the Techstream)

(a) Turn the engine switch off.

(b) Depress and hold the brake pedal.

NOTICE:

To reduce load, make sure that all electrical systems, such as the air conditioning, lighting system, electric fan and audio system are off.

(d) Slowly move the shift lever from P to D, then back to P. [#2]

HINT:

Slowly move the shift lever to circulate the automatic transaxle fluid through each part of the automatic transaxle assembly.
Keep the shift lever in each position for approximately 3 seconds.

(e) While observing the D shift indicator on the combination meter, move the shift lever back and forth between N and D at an interval of less than 1.5 seconds for 12 seconds or more. [#3]

NOTICE:

Do not pause for more than 1.5 seconds.

HINT:

Performing this operation will cause the vehicle to enter automatic transaxle fluid temperature detection mode and engine idle speed control mode.
In engine idle speed control mode, engine idle speed control starts when the automatic transaxle fluid temperature reaches the specified temperature and the engine speed is maintained.
Perform [#1] to [#3] within 60 seconds.

*a	Shift Position
*b	Indication of Shift Position
*c	Automatic Transaxle Fluid Temperature Detection Mode
*d	12 sec. or more
*e	2 sec.
*f	Less than 1.5 sec.

(f) Check that the D shift indicator comes on for 2 seconds.

HINT:

When automatic transaxle fluid temperature detection mode is activated, the D shift indicator on the combination meter comes on for 2 seconds.
If the D shift indicator does not come on for 2 seconds, return to the first step (Start the engine. [#1]) and perform the procedure again.
Automatic transaxle fluid temperature detection mode is active until the engine switch is turned off.

(g) Move the shift lever to P.

(h) Release the brake pedal.

(i) Adjust the automatic transaxle fluid temperature to the automatic transaxle fluid level adjustment temperature.

(1) Check the automatic transaxle fluid temperature by monitoring the D shift indicator.

Relationship between Automatic Transaxle Fluid Level Adjustment Temperature and the D Shift Indicator:

	Below Automatic Transaxle Fluid Level Adjustment Temperature	Automatic Transaxle Fluid Level Adjustment Temperature	Above Automatic Transaxle Fluid Level Adjustment Temperature
Automatic Transaxle Fluid Temperature	35°C (95°F) or less	35 to 45°C (95 to 113°F)	45°C (113°F) or more
D Shift Indicator	Off	On	Blinks

HINT:

In automatic transaxle fluid temperature detection mode, the D shift indicator comes on, goes off, or blinks depending on the automatic transaxle fluid temperature.
The automatic transaxle fluid filling procedure should be performed when the D shift indicator is on (the automatic transaxle fluid temperature is within the automatic transaxle fluid level adjustment temperature range).

(2) If the D shift indicator is on [Automatic Transaxle Fluid Level Adjustment Temperature: 35 to 45°C (95 to 113°F)]: Immediately proceed to the Adjust Automatic Transaxle Fluid Level (Step 8).

(3) Adjust the automatic transaxle fluid temperature.

If the D shift indicator is off [Below Automatic Transaxle Fluid Level Adjustment Temperature: 35°C (95°F) or less]: Warm up the engine with the engine idling in engine idle speed control mode until the D shift indicator turns on.
If the D shift indicator is on [Automatic Transaxle Fluid Level Adjustment Temperature: 35 to 45°C (95 to 113°F)]: Immediately proceed to Adjust Automatic Transaxle Fluid Level (Step 8).
If the D shift indicator is blinking [Above Automatic Transaxle Fluid Level Adjustment Temperature: 45°C (113°F) or more]: Stop the engine and wait until the automatic transaxle fluid temperature drops to 35°C (95°F) or less (the D shift indicator goes off). Then perform the adjust automatic transaxle fluid temperature procedure again from the beginning.

8. ADJUST AUTOMATIC TRANSAXLE FLUID LEVEL

CAUTION:

Use caution while the engine is idling and the radiator fans are operating.

(a) Lift the vehicle.

NOTICE:

Set the vehicle on a lift so that the vehicle is kept level when it is lifted up (make sure the tilt angle from the front to rear and side to side of the vehicle is within +/- 1°).

(b) Using a 10 mm hexagon socket wrench, remove the overflow plug and gasket from the transaxle housing.

CAUTION:

Be careful as the automatic transaxle fluid coming out of the overflow plug hole is hot.

If the amount of automatic transaxle fluid that comes out of the overflow plug hole is large, proceed to step [#1].
If no automatic transaxle fluid comes out of the overflow plug hole, proceed to step [#2].

NOTICE:

If only a small amount of automatic transaxle fluid (approximately 1 cc) comes out of the overflow plug hole, then only automatic transaxle fluid remaining in the No. 1 transmission oil filler tube has come out. This condition is not considered as overflow, so it is necessary to add automatic transaxle fluid.

(d) If the amount of automatic transaxle fluid that comes out of the overflow plug hole is large. [#1]

(1) Wait until the automatic transaxle fluid flow slows and only drips come out.

HINT:

The automatic transaxle fluid flow will not stop completely because the automatic transaxle fluid continues to expand as its temperature increases.

(e) If no automatic transaxle fluid comes out of the overflow plug hole. [#2]

(1) Remove the refill plug and gasket from the automatic transaxle case sub-assembly.

(2) Add automatic transaxle fluid through the refill plug hole until automatic transaxle fluid comes out of the overflow plug hole.

NOTICE:

Use Toyota Genuine ATF WS.

(3) Wait until the automatic transaxle fluid flow slows and only drips come out.

HINT:

The automatic transaxle fluid flow will not stop completely because the automatic transaxle fluid continues to expand as its temperature increases.

(f) Using a 10 mm hexagon socket wrench, install the overflow plug and a new gasket to the transaxle housing.

Torque:

50 N·m {510 kgf·cm, 37 ft·lbf}

NOTICE:

To prevent the gasket from being deformed when tightening, coat it with Toyota Genuine ATF WS.

(g) Install the refill plug and a new gasket to the automatic transaxle case sub-assembly.

Torque:

49 N·m {500 kgf·cm, 36 ft·lbf}

NOTICE:

To prevent the gasket from being deformed when tightening, coat it with Toyota Genuine ATF WS.

(h) Lower the vehicle.

(i) Turn the engine switch off.

HINT:

Turning the engine switch off ends automatic transaxle fluid temperature detection mode.

(j) Disconnect the Techstream from the DLC3 (when using the Techstream).

9. PERFORM ATF THERMAL DEGRADATION ESTIMATE RESET

NOTICE:

If approximately 50% or more of the ATF has been replaced during a repair of the transaxle or a similar operation, perform ATF Thermal Degradation Estimate Reset.

Click here

10. REBUILD WORK

(a) Lift the vehicle.

(b) Clean each part.

(d) Install the front fender apron seal LH.

Click here

(e) Install the No. 2 engine under cover assembly.

Click here

(f) Install the No. 1 engine under cover.

Click here

(g) Install the front wheel opening extension pad LH.

Click here

(h) Install the front wheel opening extension pad RH.

Click here

(i) Lower the vehicle.

SEE MORE:

Problem Symptoms Table

PROBLEM SYMPTOMS TABLE HINT: Use the table below to help determine the cause of problem symptoms. If multiple suspected areas are listed, the potential causes of the symptoms are listed in order of probability in the "Suspected Area" column of the table. Check each symptom by checking the suspect

Disassembly

DISASSEMBLY PROCEDURE 1. REMOVE MOTOR COVER (a) Disconnect the connector. (b) Disengage the 2 clamps. (c) Disengage the 4 claws to remove the motor cover as shown in the illustration. Remove in this Direction 2. REMOVE SWING GRILLE ACTUATOR ASSEMBLY (a) Remove the swing gril

Lexus ES: Adjustment

READ NEXT:

Components

High Temperature Adjustment

Replacement

SEE MORE:

Problem Symptoms Table

Disassembly
